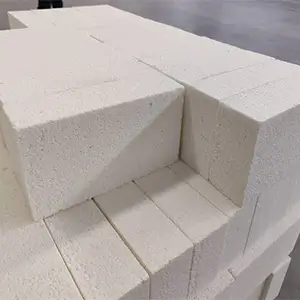

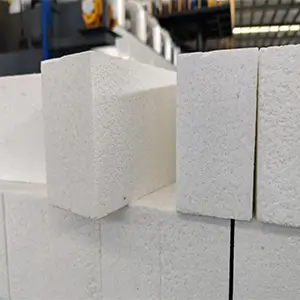

JM23 JM26 Insulation Brick is a lightweight insulating fire brick with low thermal conductivity and good thermal insulation performance for high-temperature furnace applications.
WhatsApp:
+8615038278221Email:
info@rsrefractories.com
JM23 JM26 Insulation Brick is a lightweight refractory insulation brick designed for use in industrial furnaces and kilns. Manufactured from high-quality refractory materials, it offers low bulk density, low thermal conductivity, and reliable performance at elevated temperatures.
JM23 and JM26 insulation bricks are commonly used as backup lining materials to reduce heat loss, improve energy efficiency, and protect the working lining of high-temperature equipment. Standard sizes and customized dimensions are available to meet different installation requirements.
| Brand | JM23/K23 | JM26/K26 | JM28/K28 | JM30/K30 | JM32/K32 | |
| IFB2300 | IFB2600 | IFB2800 | IFB3000 | IFB3200 | ||
| Classification Temperature (℃) | 1260 | 1430 | 1540 | 1650 | 1760 | |
| Bulk Density (g/cm3) | 0.55-0.62 | 0.78-0.8 | 0.88 | 1.03 | 1.25 | |
| Cold Crushing Strength (Mpa) | 1.2 | 1.6 | 2.1 | 2.5 | 3.5 | |
| Modulus of Rupture (Mpa) | 0.9 | 1.4 | 1.6 | 2.1 | 2.1 | |
| Reheating Linear Change (%) | 1230℃ | 1400℃ | 1510℃ | 1620℃ | 1730℃ | |
| CT-30 ℃X 8H | -0.5 | -0.5 | -0.5 | -0.9 | -0.9 | |
| Thermal Expansion 1000℃（%） | 0.5 | 0.7 | 0.8 | 0.9 | 1.1 | |
| Thermal conductivity（W/m.k） | 400℃ | 0.14 | 0.27 | 0.32 | 0.41 | 0.49 |
| 600℃ | 0.16 | 0.29 | 0.34 | 0.43 | 0.5 | |
| 800℃ | 0.18 | 0.31 | 0.36 | 0.44 | 0.51 | |
| 1000℃ | 0.2 | 0.33 | 0.38 | 0.45 | 0.53 | |
| Al2O3 (%) | 37 | 54 | 64 | 72 | 77 | |
| Fe2O3 (%) | 1 | 0.9 | 0.8 | 0.7 | 0.5 | |
JM23 JM26 Insulation Bricks are widely used in:
